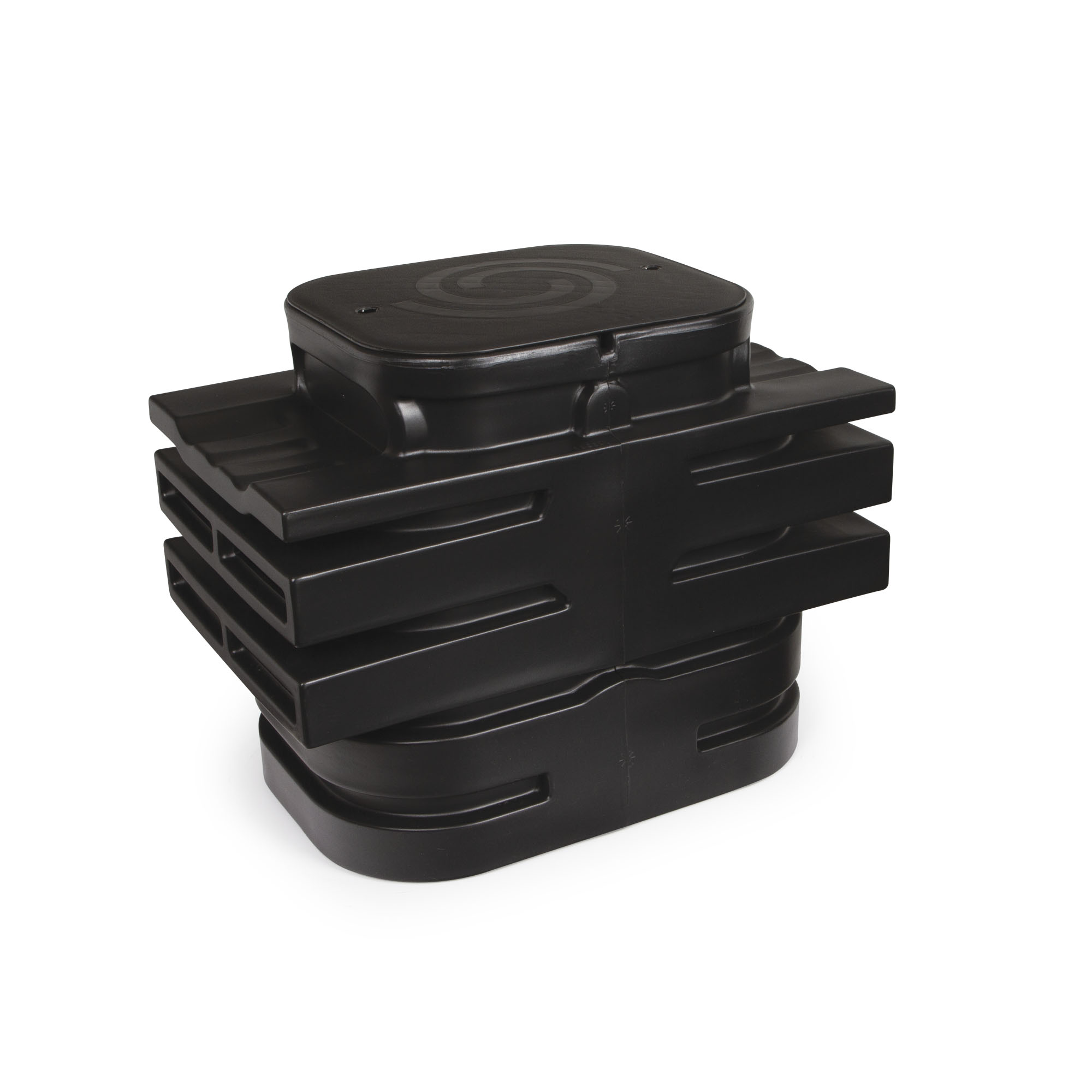

Pump Vaults

  • Pump Vaults house and protect the pumps and plumbing of underground water storage and circulaton systems
  • Atlantic's newly redesigned Pump Vaults occupy the same footprint as Eco-Blox for simplified installation within a rectangular basin
  • Vaults are rotomolded of virtually indestructible polyethylene for long, worry-free service
  • Extremely strong low profile vault lids fit all sizes, support gravel and foot traffic and can be removed without gravel falling in
  • Flat panels accommodate up to 3" plumbing and auto fills
  • Either slotted side of Vault handles double the rated flow so one side can be blocked by liner without effecting capacity

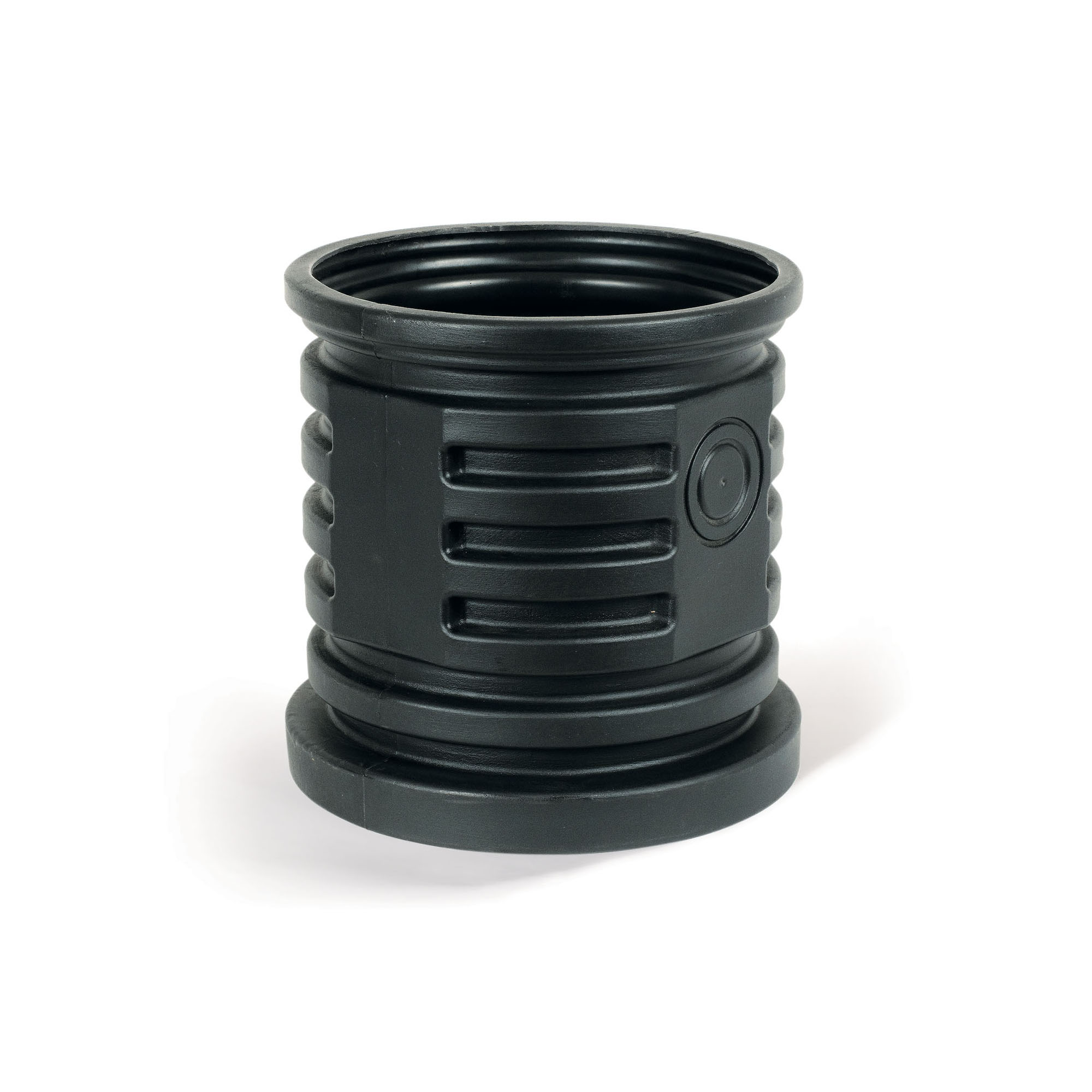

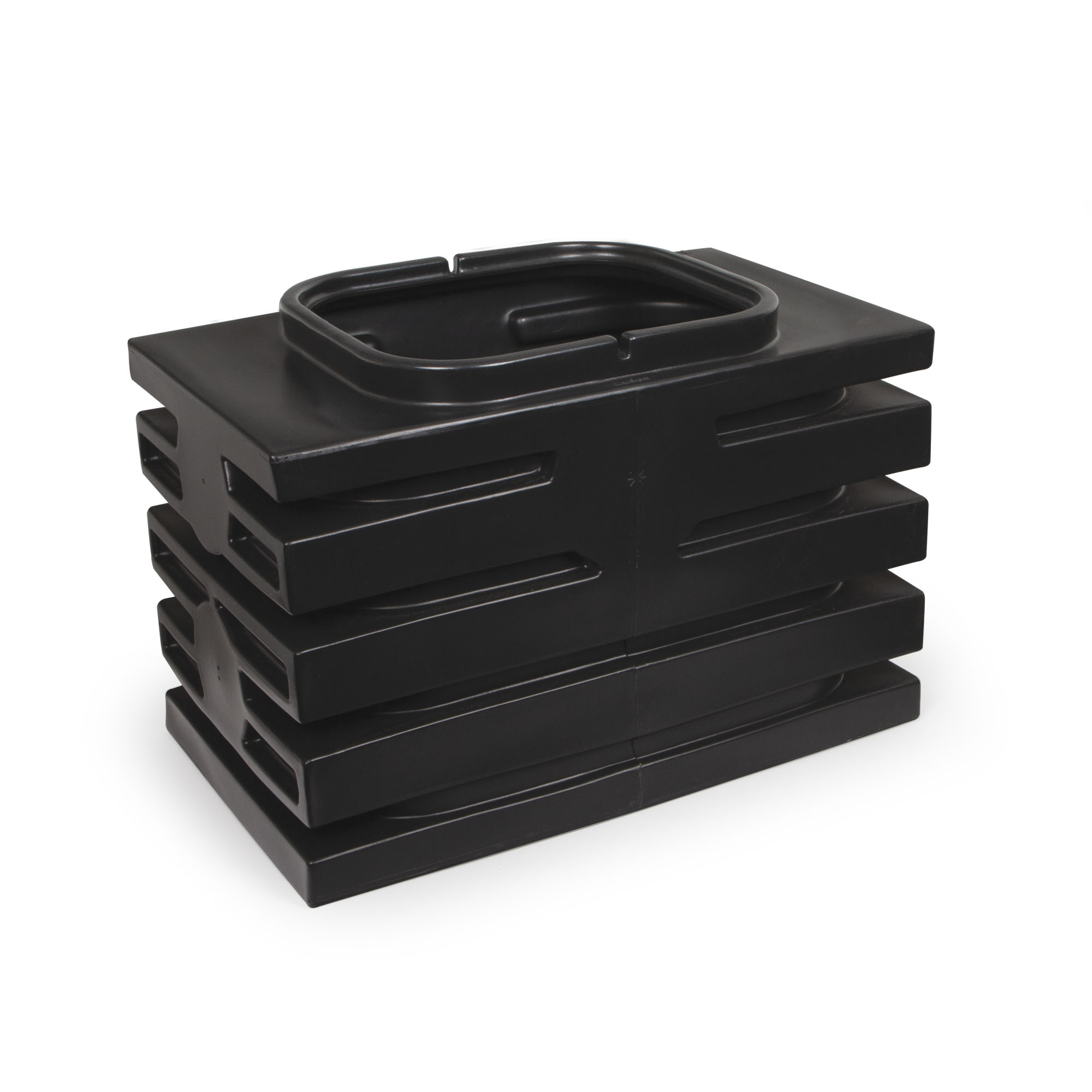

  • Pump vault extensions increase the height of the vault in deeper, larger basins, with each extension the height of one Eco-Blox
  • All Vaults accommodate two or more pumps for versatility

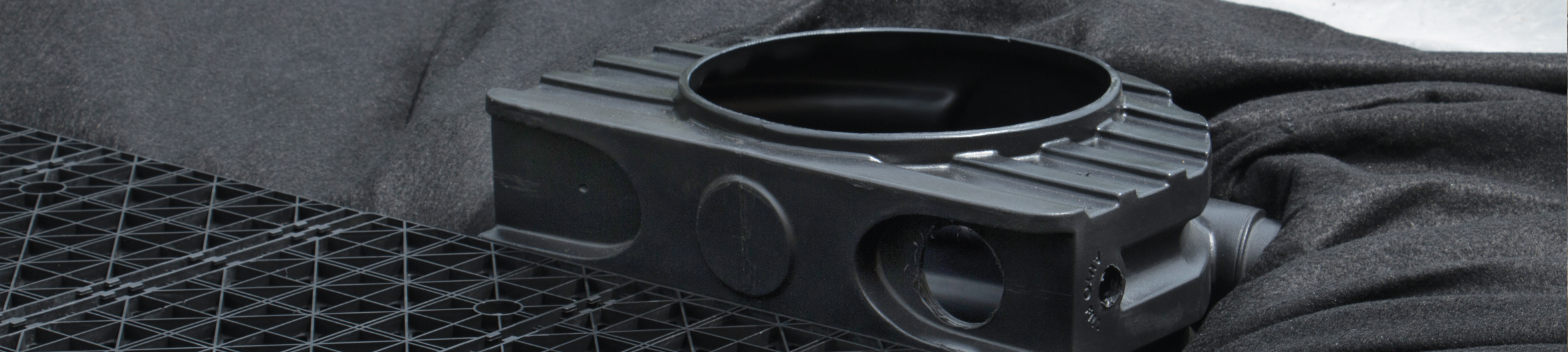

  • Remote Pump Vault allows submersible pump location outside of lined reservoir

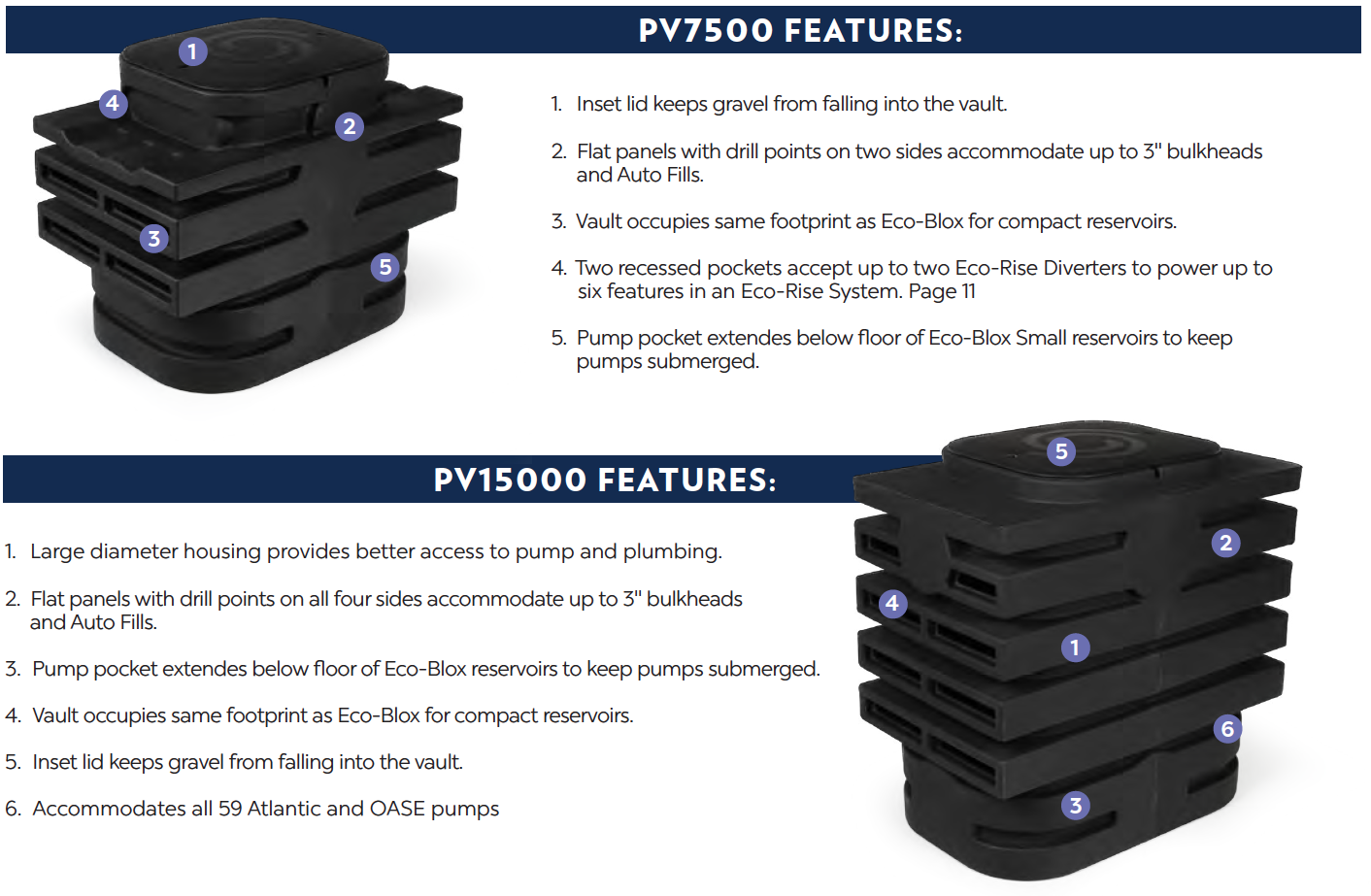

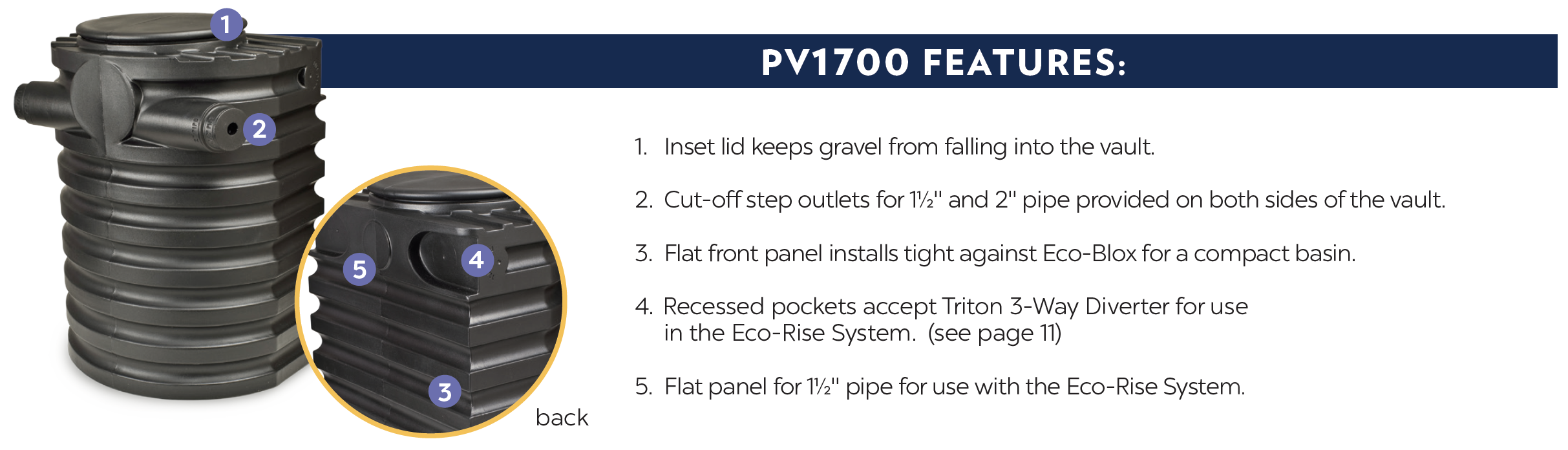

Pump Vaults Features

Pump Vaults Features

::TECH TIP::

Atlantic’s Eco-Blox and Pump Vaults make excellent, easy to maintain bog filters. With a perforated pipe under Eco-Blox, the Pump Vaults act as a clean-out for upflow bogs of any size. Pond water pumped into the bottom of the Eco-Blox resevoir sheds velocity which causes sediment to settle out. Plants set in a thin layer of gravel on top of the Eco-Blox remove fine solids and nitrates. Simply flush the chamber from above into the Pump Vault to remove sediment.
